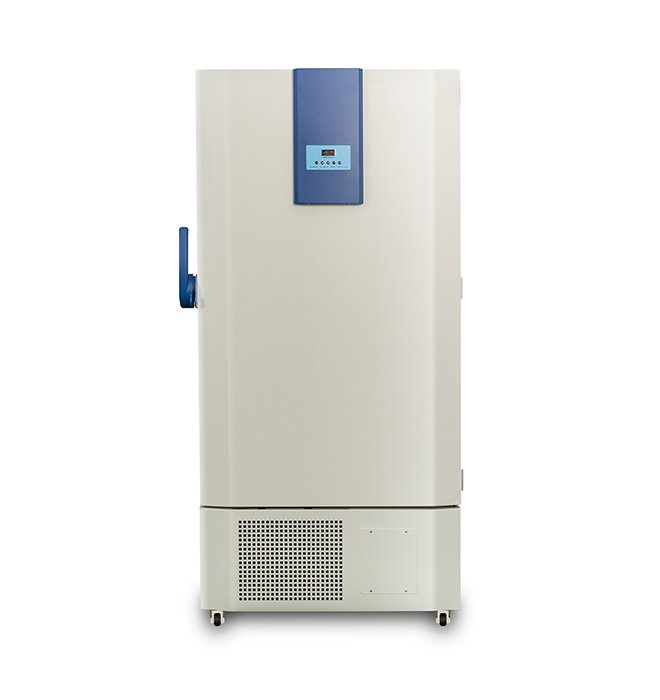

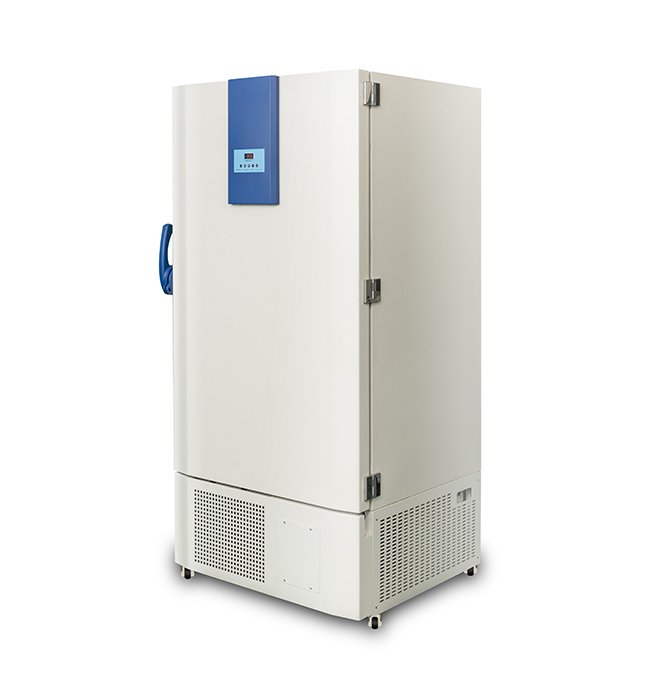

DW-40L590
-40℃ Deep Freezer is designed for long term storage of various medical and biological products, such as blood plasma, vaccines, testing reagents and laboratory materials, even some electronic products for test.
-40℃ Deep Freezer is designed for long term storage of various medical and biological products, such as blood plasma, vaccines, testing reagents and laboratory materials, even some electronic products for test.
Application
-40℃ Deep Freezer is designed for long term storage of various medical and biological products, such as blood plasma, vaccines, testing reagents and laboratory materials, even some electronic products for test. It can be installed in research institutions and clinical sites in life science, blood banks, hospitals, electronic testing and medical laboratories.
Features
There are a variety of ultra-low temperature storage solutions for individual laboratory users to choose from to meet the growing demand for sample storage.
Temperature Control

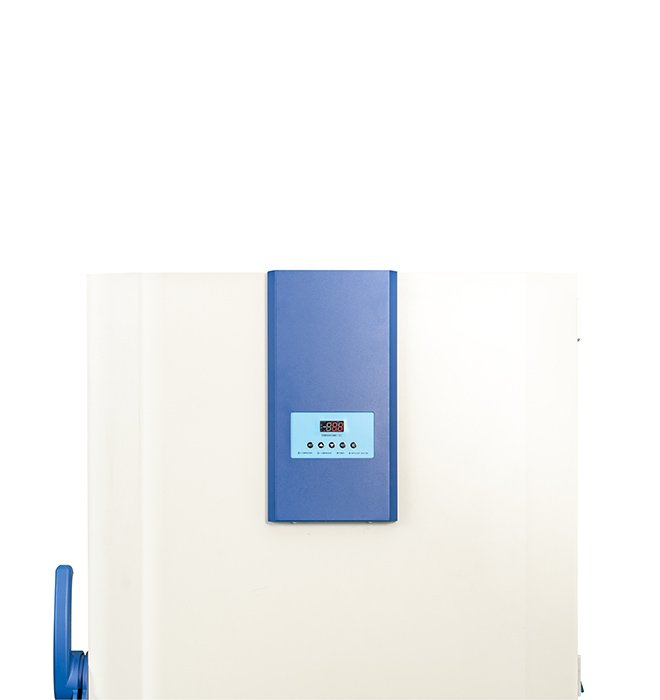

Microprocessor control, Large LED display inner temperature clearly, and with easy view;
The inner temperature can be adjustable at the range of -10℃~-40℃, with an increment of 0.1℃;
Lock and password for protection to prevent arbitrary adjustment of operating parameters
Safety Control
Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery, Over temperature alarm system, set the alarm temperature as requirements;

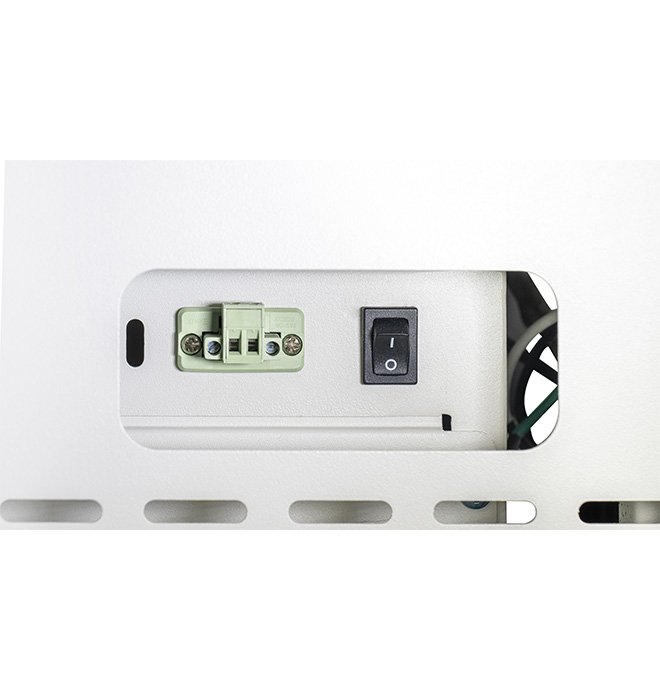

Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm;
Protection function: power-on delay, time between stops;
Chart temperature recorder monitor system (Optional).
Refrigeration System

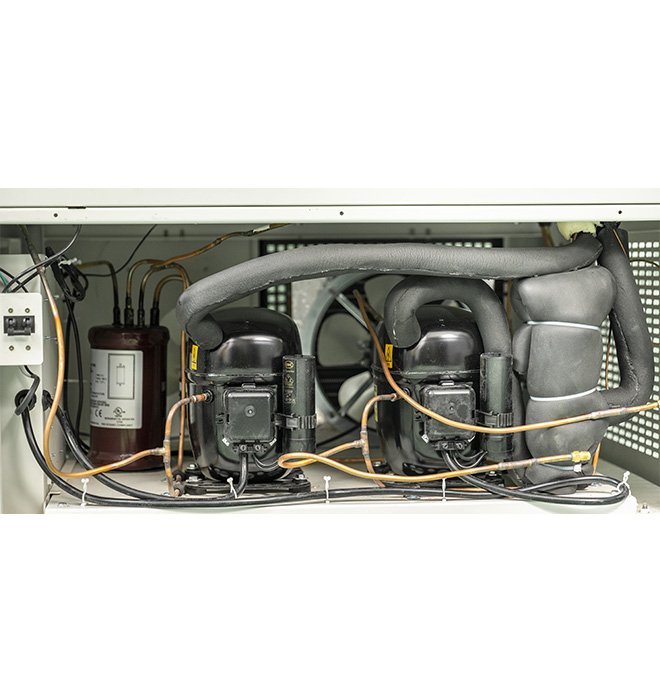

Highly efficient SECOP compressor and high reliability fan;
90mm thick foam insulation, better insulation effect, help to maintain temperature stability inside the freezer.
Optimized single refrigerant cooling system, easy maintenance and repair;
CFC-Free overall polyurethane foaming insulation;
CFC-Free refrigerant.
Ergonomic Design

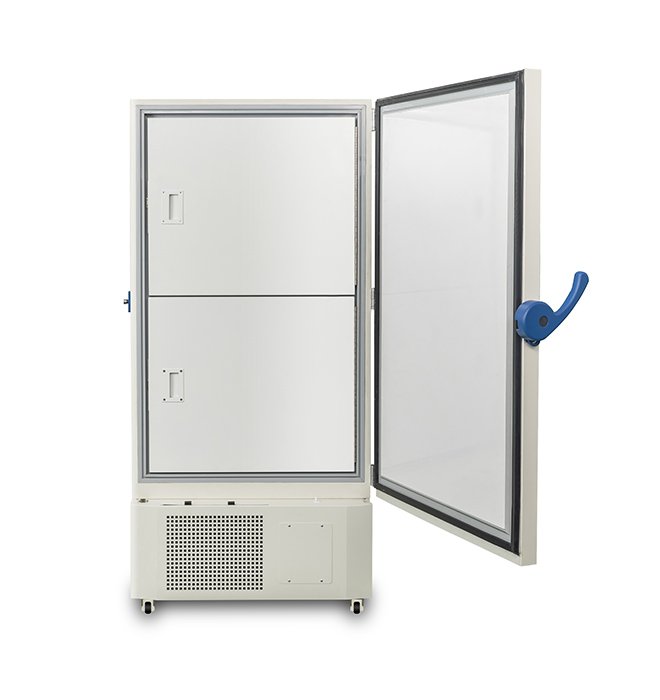

Double inner doors to reduce the loss of cold air after opening the door;

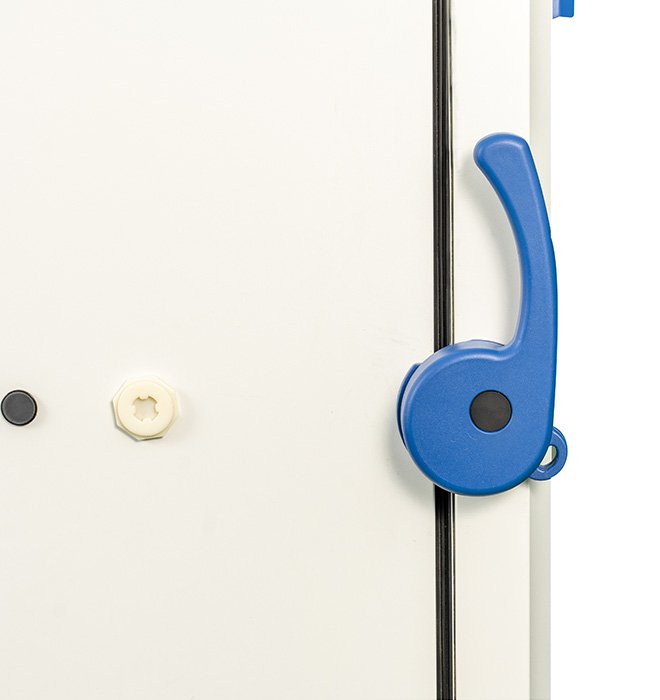

Safety door lock, preventing unauthorized access;
Wide voltage design from 192V to 242V;
Suitable for 2" and 3" international standard freezer boxes;
Pressure-balanced port design, easy to open the door;
Heavy type caster and locking with adjustable screw, easy to move and fix.
Adjustable shelf design
Ultra-simple condenser filter design, convenient for maintenance and washing.

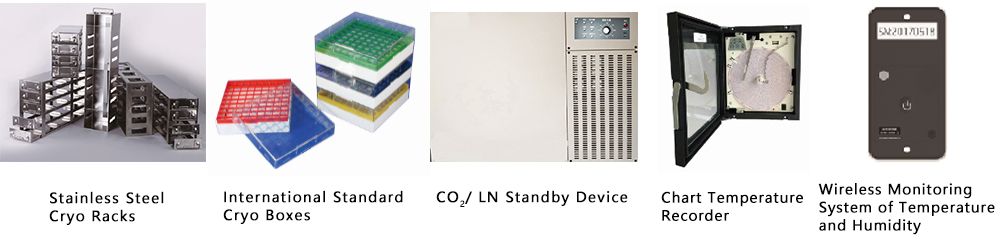

Baskets or stainless steel drawers (Optional).

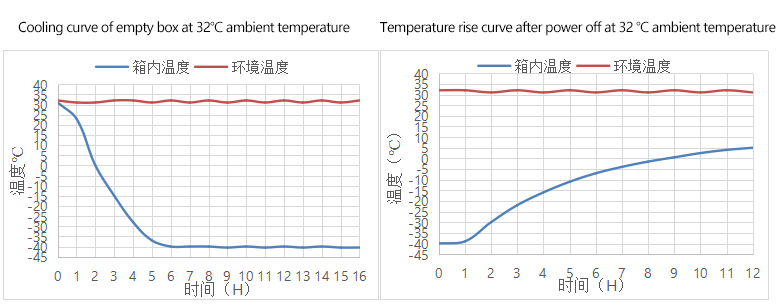

Performance Curve
Specification
Model | DW-40L280 | DW-40L360 | DW-40L590 | |
Technical Data | Cabinet Type | Vertical | Vertical | Vertical |
Climate Class | N | N | N | |
Cooling Type | Direct cooling | Direct cooling | Direct cooling | |
Defrost Mode | Manual | Manual | Manual | |
Refrigerant | R290 | R290 | R290 | |
Performance | Cooling performance(℃) | -40 | -40 | -40 |
Temperature Range(℃) | -10~-40 | -10~-40 | -10~-40 | |
Material | Exterior Material | Galvanized steel powder coating | ||
Interior Material | Galvanized steel powder coating | |||
Insulation Material | PUF | |||
Dimensions | Capacity(L) | 280L | 358L | 590L |
Interior Dimensions(W*D*H) | 460x470x1310mm | 460x520x1410mm | 740x600x1310mm | |
Exterior Dimensions(W*D*H) | 640x692X1970mm | 600x660X1920mm | 920x822X1920mm | |
Packing Dimensions(W*D*H) | 760×770×2050 (mm) | 660×720×2050 (mm) | 1050×900×2050 (mm) | |
Thickness of Cabinet Foamed Layer | 70mm | 90mm | ||
Thickness of Door | 70mm | 90mm | ||
Capacity for 2 inch boxes | —— | 180 | 400 | |
Inner door/Drawer | —/6 | 4/— | 2/— | |
Power Supply(V/Hz) | 220V/50Hz | 220V/50Hz | 220V/50Hz | |
Controller Functions | Display | Large digital display & adjusting keys | ||
High/Low Temperature | Y | Y | Y | |
Hot Condenser | Y | Y | Y | |
Power Failure | Y | Y | Y | |
Sensor Error | Y | Y | Y | |
Low Battery | Y | Y | Y | |
High Ambient Temp | Y | Y | Y | |
Alarm mode | Sound and light alarm, remote alarm terminal | |||
Accessories | Caster | Y | Y | Y |
Test Hole | Y | Y | Y | |
Shelves(stainless steel) | —— | —— | 3 | |
Chart Temperature Recorder | Optional | Optional | Optional | |
Door locking device | Y | Y | Y | |
Handle | Y | Y | Y | |
Pressure balance hole | Y | Y | Y | |
Racks & Boxes | Optional | Optional | Optional |
