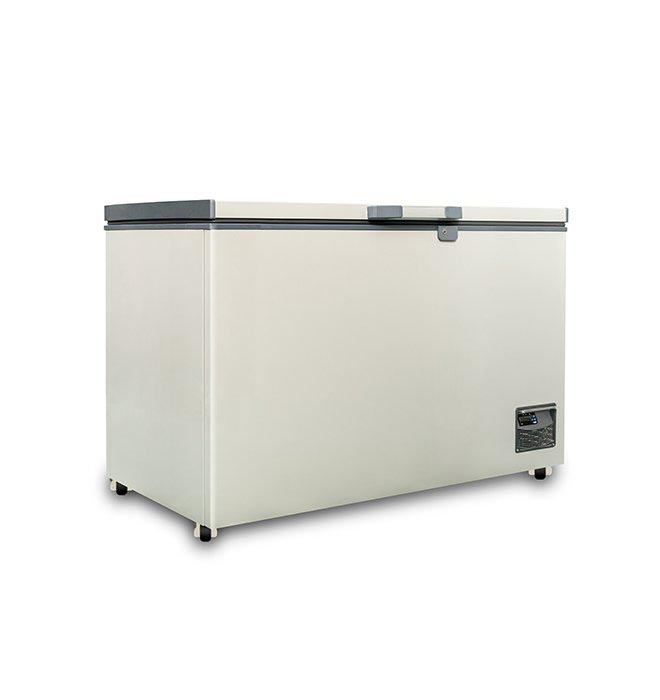

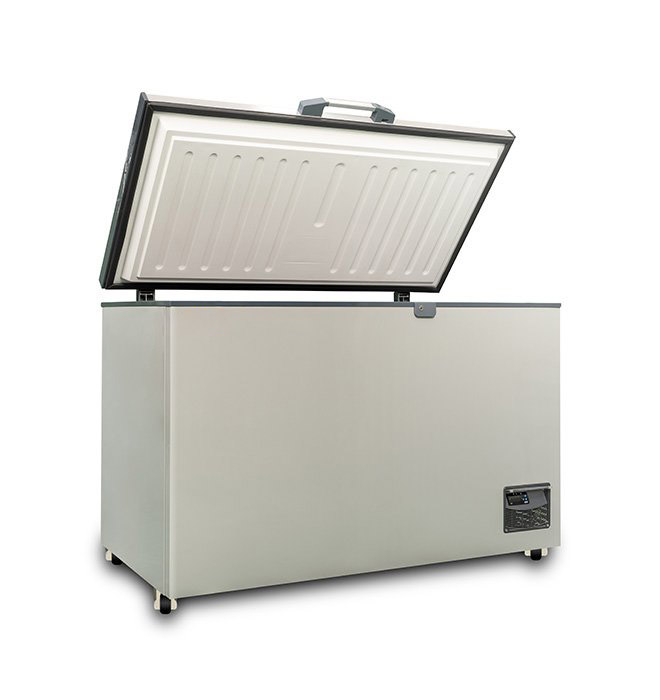

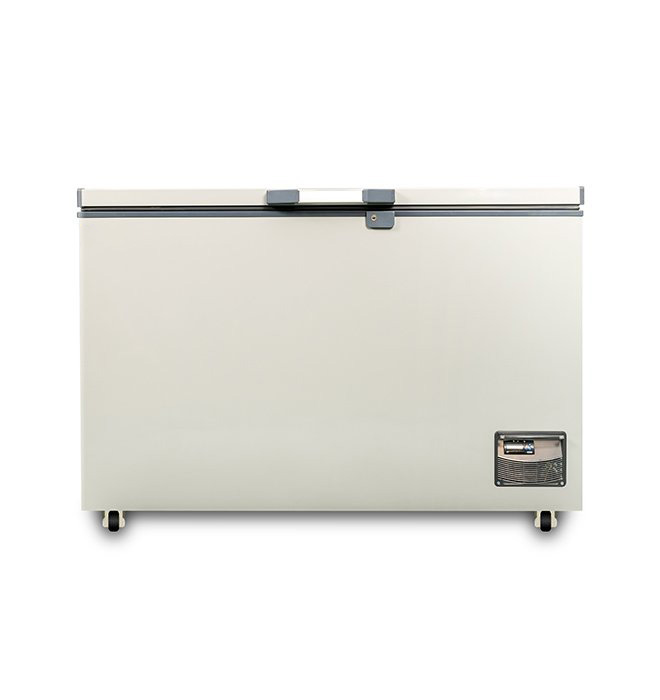

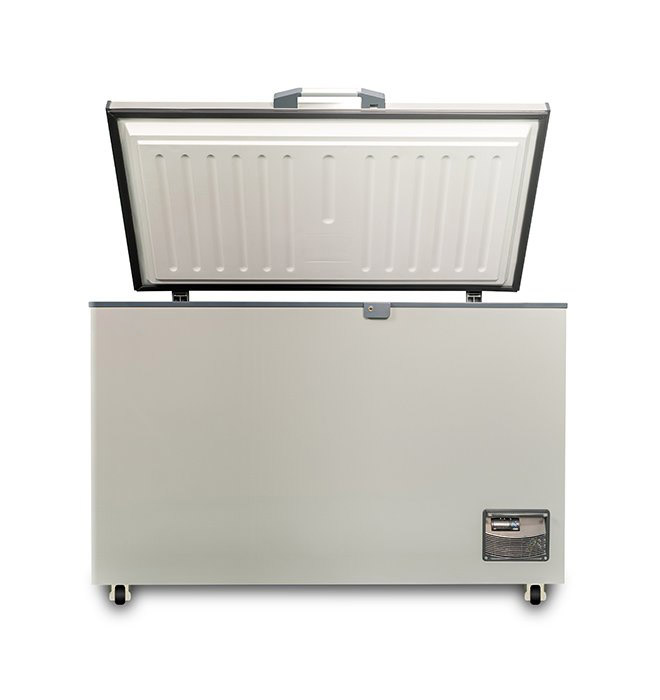

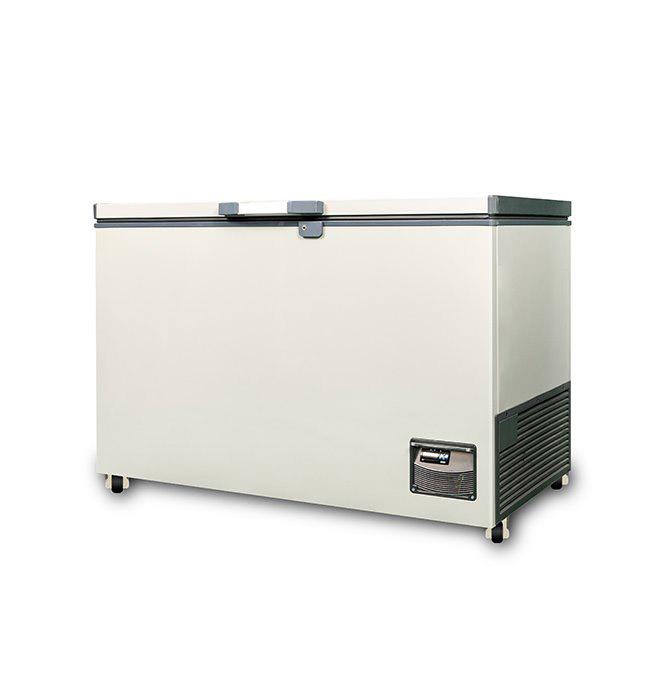

-60℃ Chest ULT Freezer

DW-60W100

-60℃ Deep Freezer is specially designed for long term storage of various biological products and deep sea foods.

Description

Application

-60℃ Deep Freezer is specially designed for long term storage of various biological products and deep sea foods. It can be installed in institutions including blood banks, hospitals, epidemic prevention services, research institutes and laboratories for electronic and chemical plants, biological engineering institutes and marine fishery companies.

And it is especially suitable for the long-term preservation of precious deep-sea high-nutrition fish.


Features

Temperature Control

Microprocessor control, Large LED display inner temperature clearly, and with easy view;

The inner temperature can be adjustable at the range of -10℃~-65℃;


Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, over temperature alarm system, set the alarm temperature as requirements;

Two alarming methods: buzzer alarming and digital flashing alarming;

Protection function: power-on delay, time between stops.


Refrigeration System

Optimized cascade refrigeration technology, SECOP compressor to reach a high efficient refrigeration effect;

Specially designed Heat Exchanger, high efficient heat transfer,energy conservation;

Single compressor efficient thermal cycle refrigeration technology, low noise, more energy efficiency;

CFC-Free overall polyurethane foaming insulation;

CFC-Free refrigerant.


Ergonomic Design

Safety door lock, preventing unauthorized access;

Wide voltage design from 192V to 242V;

Equipped with storage basket;

Heavy type caster and locking with adjustable screw, easy to move and fix.

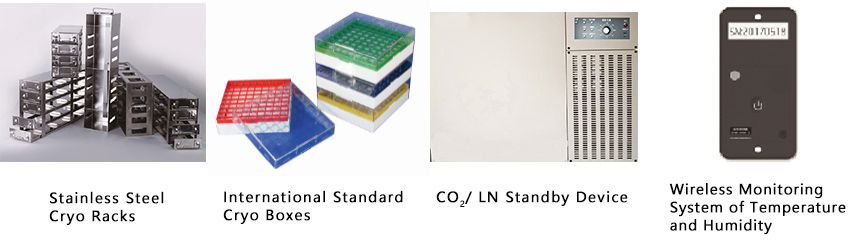

Optional Accessories

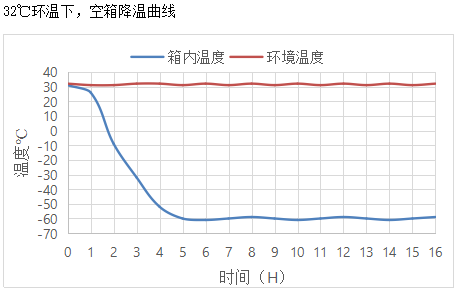

Performance Curve

Cooling curve of empty box at 32℃ ambient temperature


Specification

Model DW-60W100 DW-60W200 DW-60W300 DW-60W400 DW-60W500
Technical Data Cabinet Type Chest Chest Chest Chest Chest
Climate Class N N N N N
Cooling Type Direct cooling
Defrost Mode Manual
Refrigerant CFC-Free
Performance Cooling performance(℃) -60 -60 -60 -60 -60
Temperature Range(℃) -10~-60 -10~-60 -10~-60 -10~-60 -10~-60
Control Controller Microprocessor
Display LED
Material Interior Aluminum powder coating
Exterior Galvanized steel powder coating
Electrical Data Power Supply(V/Hz) 220/50 220/50 220/50 220/50 220/50
Power(W) 100 220 300 350 400
Dimensions Capacity(L) 100 190 285 380 470
Net/Gross Weight(approx) 40/55 (kg) 70/85 (kg) 76/93(kg) 93/110 (kg) 110/130 (kg)
Interior Dimensions(W*D*H) 520×345×615 (mm) 760×485×600 (mm) 1080×485×600 (mm) 1340×485×600 (mm) 1710×485×600 (mm)
Exterior Dimensions(W*D*H) 700×600×850 (mm) 940×765×885 (mm) 1270×765×885 (mm) 1530×765×885 (mm) 1900×765×885 (mm)
Packing Dimensions(W*D*H) 800×700×1000 (mm) 950×870×1035 (mm) 1370×870×1035 (mm) 1630×870×1035 (mm) 2000×870×1035 (mm)
Functions High/Low Temperature Y Y Y Y Y
Sensor Error Y Y Y Y Y
Lockage Y Y Y Y Y
Accessories Caster Y Y Y Y Y
Foot N/A N/A N/A N/A N/A
Test Hole N/A N/A N/A N/A N/A
Baskets/Inner Doors 2/- 2/- 2/- 2/- 2/-
Temperature Recorder Optional Optional Optional Optional Optional
Cryo racks Optional Optional Optional Optional Optional
