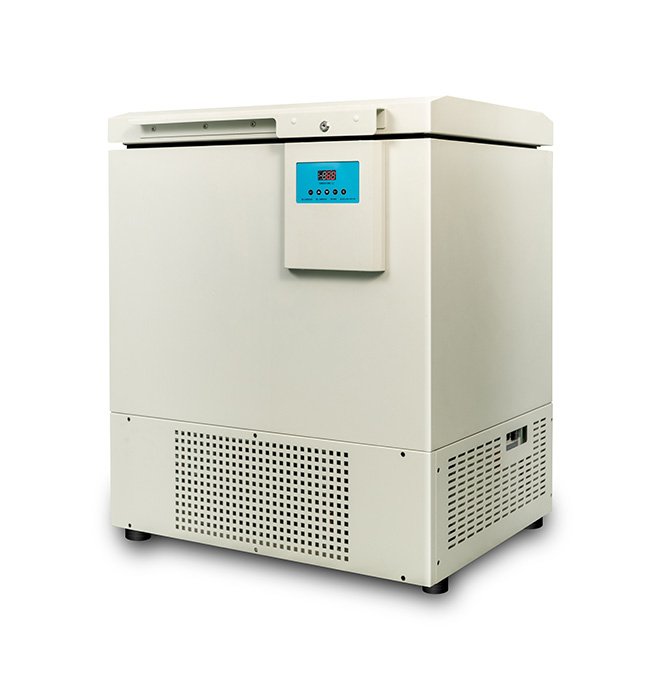

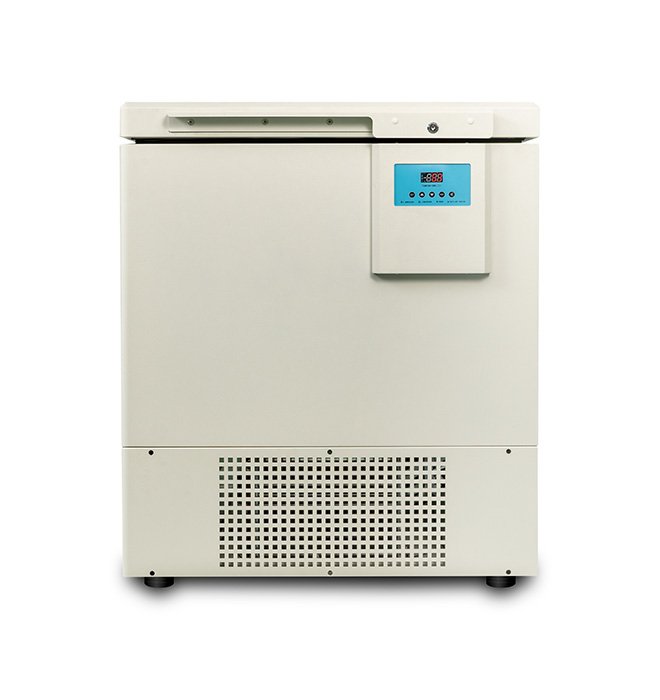

-86℃ Chest ULT Freezer

DW-86W730

-86℃ ULT Freezer is specially designed for long term storage of various biological products, such as germs, virus, erythrocytes, leukocytes, cutis.

Description

Application

-86℃ ULT Freezer is specially designed for long term storage of various biological products, such as germs, virus, erythrocytes, leukocytes, cutis. It can be installed in institutions including blood banks, hospitals, epidemic prevention services, research institutes and laboratories for electronic and chemical plants, biological engineering institutes and marine fishery companies.


Features

There are a variety of ultra-low temperature storage solutions for individual laboratory users to choose from to meet the growing demand for sample storage.


Temperature Control

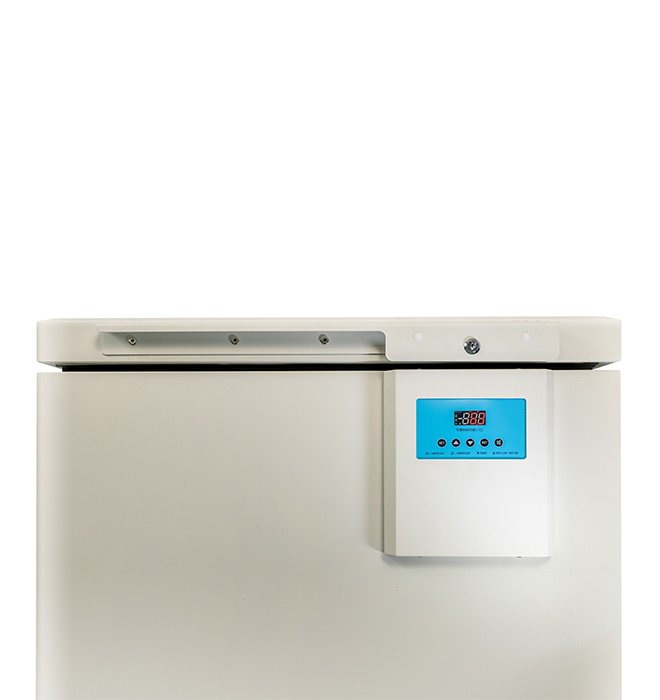

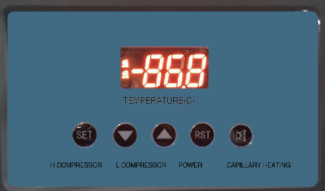

Microprocessor control, Large LED display inner temperature clearly, and with easy view;

The inner temperature can be adjustable at the range of -40℃~-86℃, with an increment of 0.1℃;

Lock and password for protection to prevent arbitrary adjustment of operating parameters

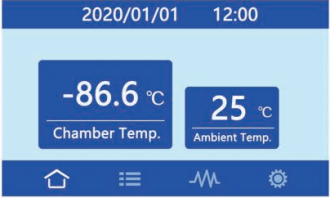

Optional 7"color LCD touch screen display system.




Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery, Over temperature alarm system, set the alarm temperature as requirements;

Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm;

Protection function: power-on delay, time between stops.


Refrigeration System

Optimized cascade refrigeration technology, SECOP compressor to reach a high refrigeration effect;

Specially designed Heat Exchanger, high efficient heat transfer,energy conservation;

V.I.P insulation panels to ensure the insulation performance;

CFC-Free overall polyurethane foaming insulation;

High efficient hydrocarbon refrigerant.


Ergonomic Design

Safety door lock, preventing unauthorized access;

Wide voltage design from 192V to 242V;

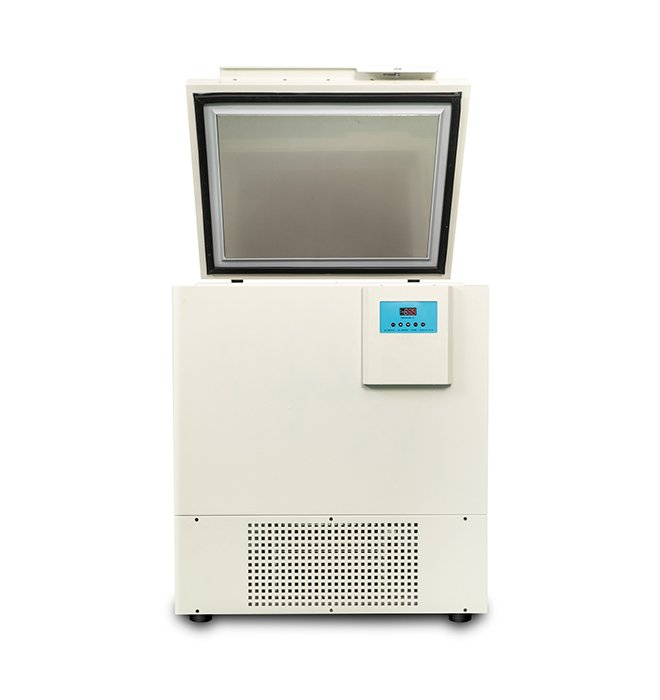

Double inner doors to reduce the loss of cold air after opening the door;

Suitable for 2" and 3" international standard freezer boxes;Pressure-balanced port design, easy to open the door;

Heavy type caster and locking with adjustable screw, easy to move and fix;

Ultra-simple condenser filter design, convenient for maintenance and washing.

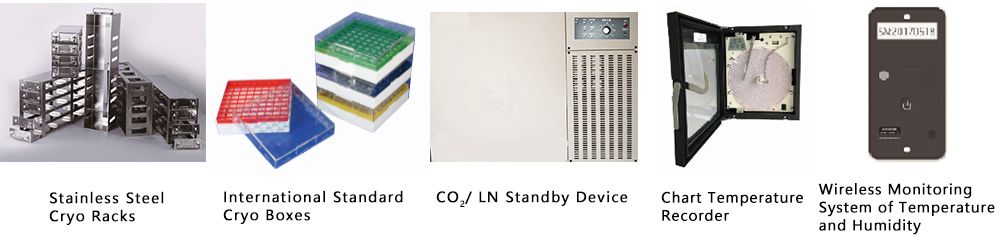

Optional Accessories

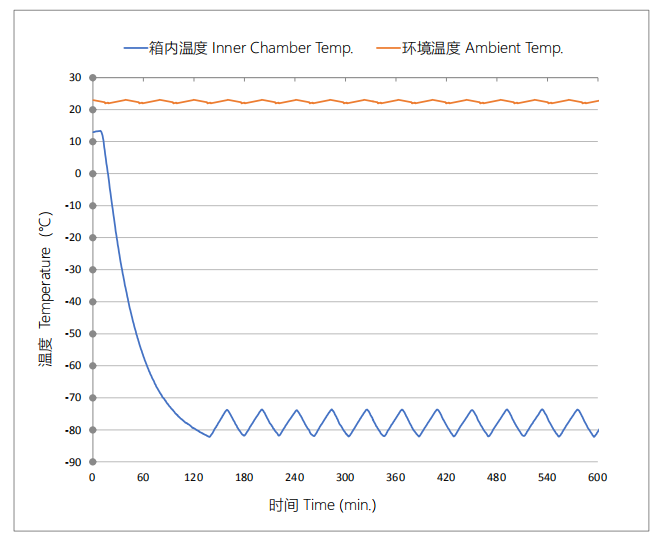

Performance Curve


Specification

Model DW-86W128 DW-86W458 DW-86W730
Technical Data Cabinet Type Chest Chest Chest
Climate Class N N N
Cooling Type Direct cooling Direct cooling Direct cooling
Defrost Mode Manual Manual Manual
Refrigerant Hydrocarbon, Mixing CFC-Free Hydrocarbon, Mixing
Performance Cooling performance(℃) -80 -80 -80
Temperature Range(℃)  -40~-86  -40~-86  -40~-86
Power (W) 480 1000 1100
Energy consumption (KW.H/24H) 4.5 11 12
Material Exterior Material Galvanized steel powder coating
Interior  Material Stainess steel
Insulation Material PUF+VIP
Dimensions Capacity(L) 128L 480 730L
Interior Dimensions(W*D*H) 630×440×470 (mm) 1380×500×660 (mm) 1310×740×770 (mm)
Exterior Dimensions(W*D*H) 850×660×1020 (mm) 2110×885×1095 (mm) 1930×997×1035 (mm)
Package Dimensions(W*D*H) 930×755×1150 (mm) 2220×950×1250(mm) 2010×1095×1165 (mm)
Container load (20'/40') 36/72 12/24 10/20
Thickness of Cabinet Foamed Layer 90mm 120mm 90mm
Thickness of Door 90mm 100mm 90mm
Capacity for 2 inch boxes 96 270 480
Inner door ——
Power Supply(V/Hz) 220V/50Hz 220V/50Hz 220V/50Hz
Controller Functions Display Large digital display & adjusting keys
High/Low Temperature Y Y Y
Hot Condenser Y N Y
Power Failure Y N Y
Sensor Error Y Y Y
Low Battery Y N Y
High Ambient Temp Y N Y
Alarm mode Sound and light alarm, remote alarm terminal Sound and light alarm Sound and light alarm, remote alarm terminal
Accessories Caster Y Y Y
Test Hole Y Y Y
Shelves(stainless steel) —— —— ——
Chart Temperature Recorder Optional Optional Optional
Door locking device Y Y Y
Handle Y Y Y
Pressure balance hole Y Y Y
Racks & Boxes Optional Optional Optional
