HHS Exclusive Clean Bench
Model: HHS-1000/1300/1600/1800(-U)
Model: HHS-1000/1300/1600/1800(-U)
|

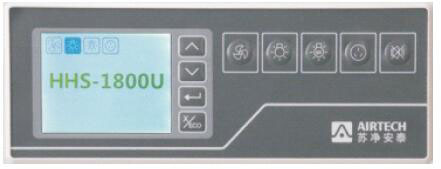

1.Friendly Control Panel ◆ Color HD LED display, soft button control. ◆ Showing time, air velocity, temperature and HEPA filter life on screen in real time. ◆ Operator can make an appointment for fan and UV light. |
|

|

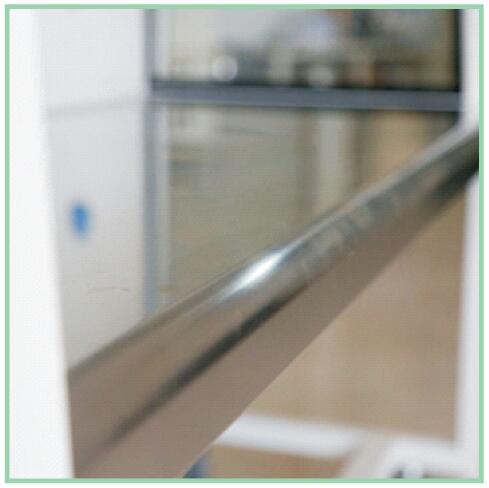

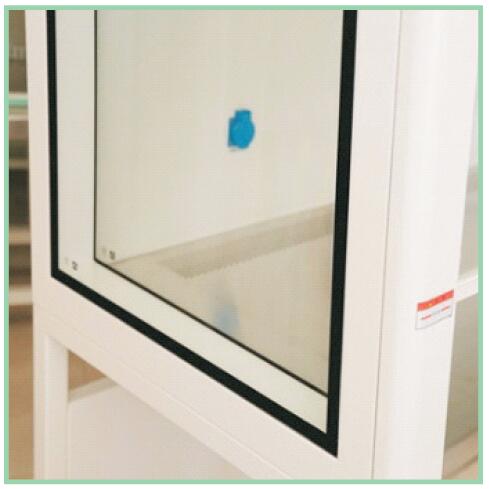

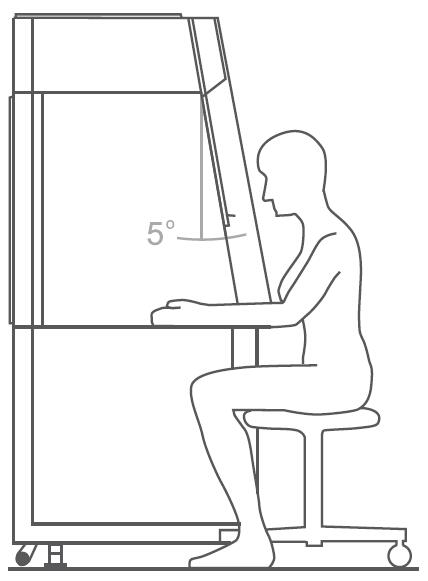

2.Humanized design ◆ 5°sloped front, nice shape, relieving the sense of repression. ◆ Double layer side window, wide vision, convenient to observe. ◆ Integrative stainless steel working table design, easy to clean. ◆ Circular-Arc armrest, reducing fatigue. ◆ Detached Support, easy to assemble and carry. |
|
3.Safe and Reliable, Energy-Efficient ◆ It will test by itself when turning on. ◆ ECO mode can reduce energy consumption. ◆ Alarm system for fan , temperature，HEPA filter life. ◆ Light, UV light and front window are interlocked. ◆ The clean air cover all the working area. ◆ The anti UV glass is safe and reliable. |

|
| ◆ The velocity of air flow is uniform（Patent: 201020511001.X）, ensuring air flow pattern reliable. |
|
Model/Item |
HHS-1000 |
HHS-1300 |
HHS-1600 |
HHS-1800 |
|
Cleanliness |
ISO CLASS 5 |
|||
|
Air Velocity |
0.28~0.36 m/s (55.1~70.9fpm) (adjustable) |
|||
|
Noise |
≤65 dB(A) |
|||
|
Illumination |
≥650 Lx |
|||
|
Power supply |
AC220V, 1φ, 50Hz |
|||
|
Consumption ※ |
300 w |
600 w |
600 w |
600 w |
|
Weight |
140 kg |
175 kg |
200 kg |
210 kg |
|
Work Dimension (W1XD1XH1)
|
1000 x 560 x 720 mm (39.4'' x 22.0'' x 28.3'') |
1300 x 560 x 720 mm (51.2'' x 22.0'' x 28.3'') |
1600 x 560 x 720 mm (63.0' x 22.0' 'x 28.3'') |
1800 x 560 x 720 mm (70.9'' x 22.0'' x 28.3'') |
|
Overall Dimension (WXDXH)
|
1080 x 785 x 1820 mm (42.5'' x 30.9'' x 71.7'') |
1380 x 785 x 1820 mm (54.3'' x 30.9'' x 71.7'') |
1680 x 785 x 1820 mm (66.1'' x 30.9'' x 71.7'') |
1880 x 785 x 1820 mm (74.0'' x 30.9'' x 71.7'') |
|
Size & No. of HEPA Filter
|
990 x 680 x 69 mm x1 set (39.0'' x 26.8'' x 2.7'' x1 set) |
645 x 680 x 69 mm x2 sets (25.4'' x 26.8'' x 2.7'' x2 sets) |
795 x 680 x 69 mm x2 sets (31.3'' x 26.8'' x 2.7'' x2 sets) |
895 x 680 x 69 mm x2 sets (35.2'' x 26.8'' x 2.7'' x2 sets) |
|
Light |
LED 15w x1 pc |
LED 24.5w x1 pc |
LED 31w x1 pc |
LED 36w x1 pc |
|
UV light (optional) |
18w x1 pc |
30w x1 pc |
36w x1 pc |
36w x1 pc |
| Materials | Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory | |||
| Optional: working area all SS304 | ||||
| Mode of Operation | single people/single side | double people/single side | ||

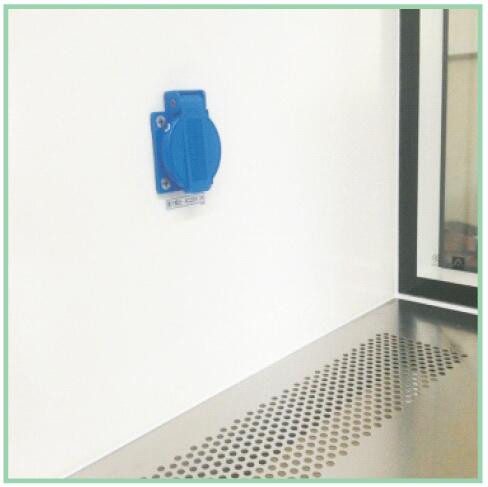

※ not include spare socket, the capacity of each unit is 3A, each clean bench with 2 spare sockets.
