HVS Exclusive Clean Bench
Color HD LED display, soft button control. Showing time, air velocity, temperature and HEPA filter life on screen in real time.
Color HD LED display, soft button control. Showing time, air velocity, temperature and HEPA filter life on screen in real time.
|
1.Friendly Control Panel ◆ Color HD LED display, soft button control. ◆ Showing time, air velocity, temperature and HEPA filter life on screen in real time. ◆ Operator can make an appointment for fan and UV light. |
|

|

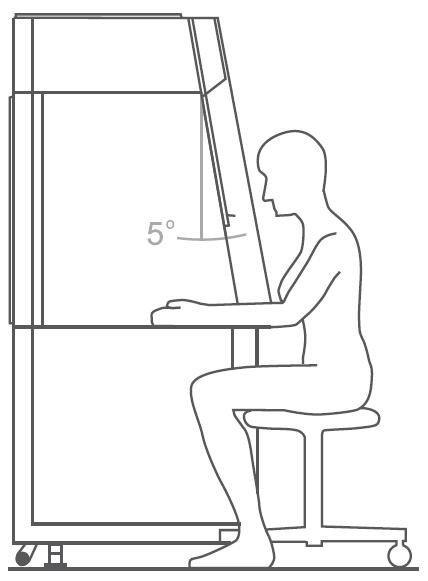

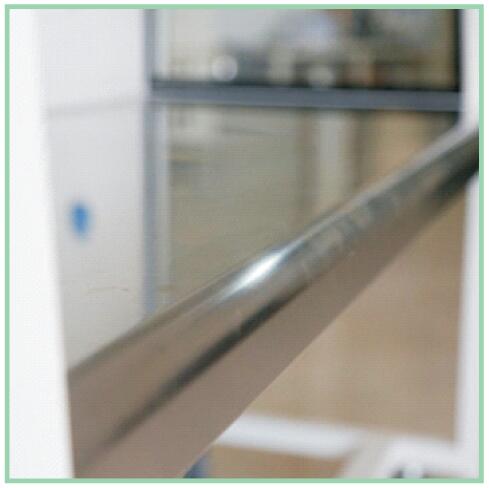

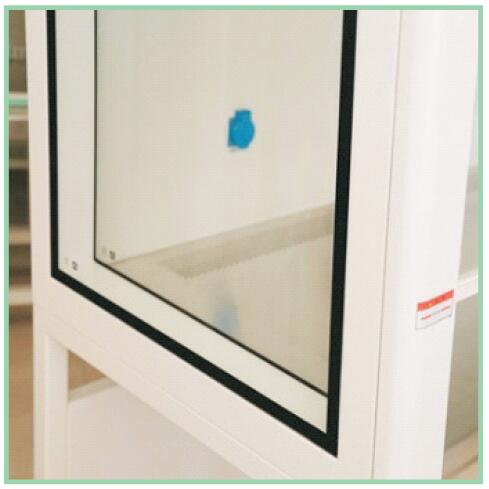

2.Humanized design ◆ 5°sloped front, nice shape, relieving the sense of repression. ◆ Double layer side window, wide vision, convenient to observe. ◆ Integrative stainless steel working table design, easy to clean. ◆ Circular-Arc armrest, reducing fatigue. ◆ Detached Support，easy to assemble and carry. |
|
3.Safe and Reliable, Energy-Efficient ◆ It will test by itself when turning on. ◆ ECO mode can reduce energy consumption. ◆ Alarm system for fan , temperature，HEPA filter life. ◆ Light, UV light and front window are interlocked. ◆ The clean air cover all the working area. ◆ The anti UV glass is safe and reliable. |
|
|
◆ The velocity of air flow is uniform（Patent: 201020511001.X）, ensuring air flow pattern reliable ◆ Front window adopts hanging lifting system which imported from Japan. （Patent:97235425.5） |
|
Model/Item |
HVS-1000 |
HVS-1300 |
HVS-1600 |
HVS-1800 |
|
Cleanliness |
ISO CLASS 5 |
|||
|
Air velocity |
0.26~0.38 m/s (55.1~70.9fpm)(adjustable) |
|||
|
Noise |
≤65 dB(A) |
|||
|
Illumination |
≥650 Lx |
|||
|
Power supply |
AC220V, 1φ, 50Hz |
|||
|
Consumption※ |
300 w |
600 w |
600 w |
600 w |
|
Weight |
170 kg |
205 kg |
230 kg |
250 kg |
|
Work Dimension (W1XD1XH1)
|
1000 x 650 x 720 mm (39.4'' x 25.6'' x 28.3'') |
1300 x 650 x 720 mm (51.2'' x 25.6'' x 28.3'') |
1600 x 650 x 720 mm (63.0'' x 25.6'' x 28.3'') |
1800 x 650 x 720 mm (70.9'' x 25.6'' x 28.3'') |
|
Overall Dimension (WXDXH)
|
1180 x 745 x 1920 mm (46.5'' x 29.3'' x 75.6'') |
1480 x 745 x 1920 mm (58.3'' x 29.3'' x 75.6'') |
1780 x 745 x 1920 mm (70.1'' x 29.3'' x 75.6'') |
1980 x 745 x 1920 mm (78.0'' x 29.3'' x 75.6'') |
|
Size & No. HEPA Filter
|
960 x 530 x 69 mm x1 set (37.8''x20.9''x2.7''x1 set) |
1260 x 530 x 69 mm x1 set (49.6'' x 20.9'' x 2.7'' x1 set) |
1560 x 530 x 69 mmx1 set (61.4'' x 20.9'' x 2.7'' x1 set) |
1760 x 530 x 69 mm x1 set (69.3'' x 20.9'' x 2.7'' x1 set) |
|
Light |
LED 15w x 1 pc |
LED 24.5w x 1 pc |
LED 31w x 1 pc |
LED 36w x 1 pc |
|
UV Light (optional) |
18w x 1 pc |
30w x 1 pc |
36w x 1 pc |
36w x 1 pc |
| Materials | Working table: All-in-one Stainless Steel, Outside cabinet: high grade steel and lacquered in ivory | |||
| Optional: working area all ss304 | ||||
| Mode of Operation | single people/single side | double people/single side | ||

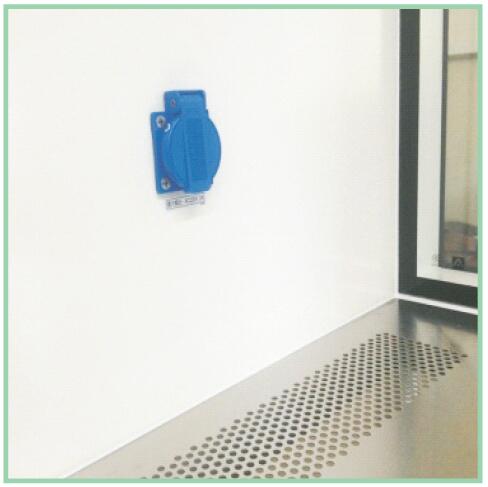

※ not include spare socket, the capacity of each units is 3A, each clean bench with 2 spare sockets.
