KXC-L1100G
Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
Application
Auto Defrost, Forced-Air Circulation
Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
Designed to store blood, medicine.
Features
Temperature Control
Microprocessor control, Large LED display inner temperature clearly, and with easy view;
The inner temperature can be adjustable at the range of 2℃~6℃, with an increment of 0.1℃;
Multiple sensors to display or control the temperature;
Lock and password for protection to prevent arbitrary adjustment of operating parameters
Optional 4.3"color LCD touch screen display system.
Safety Control
Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery, Over temperature alarm system, set the alarm temperature as requirements;
Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm;
Protection function: power-on delay, time between stops;

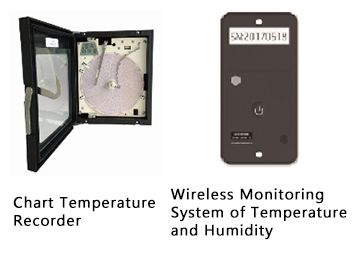

Chart temperature recorder monitor system(Optional).
Refrigeration System
Highly efficient famous brand compressor and fan;, with a high efficient refrigeration effect;
70mm thick foam insulation, better insulation effect, help to maintain temperature stability inside the refrigerator.
Forced-Air Circulation for large airflow with special air ducts to guarantee inner temperature consistency.
Large area of the evaporator design, cooling strong and high temperature uniformity, While effectively suppressing frost, reducing defrosting process.
CFC-Free/HCFC refrigerant.
Ergonomic Design
Design of computer-user interface based on 4.3” color touch screen;
Safety door lock, preventing unauthorized access;
Auto defrost function guarantees a good performance in high ambient temperature and humidity area;
Wide voltage design from 192V to 242V;
Inner LED lighting and caster design;
Maintenance free condenser design;
No condensation glass door;
USB export interface for event and temperature data ;
Baskets or stainless steel drawers (Optional).
Optional Accessories

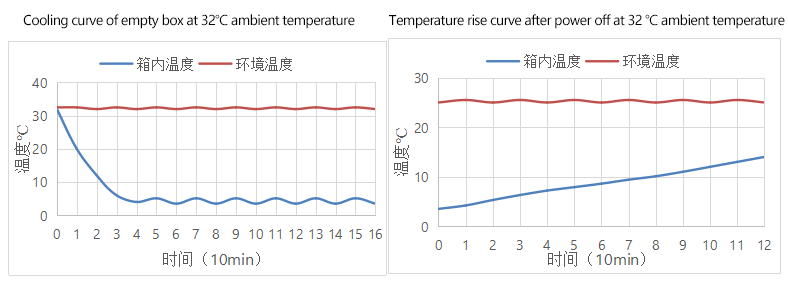

Performance Curve
Specification
Model | KXC-L650G | KXC-L1100G | |
Technical Data | Cabinet Type | Vertical | Vertical |
Climate Class | ST | ST | |
Cooling Type | Forced air cooling | Forced air cooling | |
Defrost Mode | Auto | Auto | |
Refrigerant | HC,R290 | HC,R290 | |
Performance | Cooling performance(℃) | 4 | 4 |
Temperature Range(℃) | 2~8 | 2~8 | |
Control | Controller | Microprocessor (Dixell) | Microprocessor (Dixell) |
Display | LED | LED | |
Alarm | Audible, Remote | Audible, Remote | |
Material | Interior | Galvanized steel powder coating(white)stainless steel is optional | Galvanized steel powder coating(white)stainless steel is optional |
Exterior | Galvanized steel powder coating(white) | Galvanized steel powder coating(white) | |
Electrical Data | Power Supply(V/Hz) | 220/50 (115/60 is optional) | 220/50 (115/60 is optional) |
Power(W) |
|
|
|
Dimensions | Capacity(L) | 600 | 1100 |
Net/Gross Weight(approx) | 125/150 (kg) | 165/195 (kg) | |
Interior Dimensions(W*D*H) | 640×680×1380 (mm) | 1160×680×1380 (mm) | |
Exterior Dimensions(W*D*H) | 780×822×1880 (mm) | 1300×822×1880 (mm) | |
Packing Dimensions(W*D*H) | 880×950×2020 (mm) | 1400×950×2020 (mm) | |
Functions | High/Low Temperature | Yes | Yes |
Remote Alarm | Yes | Yes | |
Sensor Failure | Yes | Yes | |
Door Ajar | Yes | Yes | |
Lockage | Yes | Yes | |
Inner LED light | Yes | Yes | |
Accessories | Caster | Yes | Yes |
Test Hole | Yes | Yes | |
Shelves/Inner Doors | 5/- | 5/- | |
Foaming Door | optional | optional | |
Temperature Recorder | optional | optional |
