Application

Auto Defrost, Forced-Air Circulation
Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
Designed to store pharmaceuticals, medicine, vaccines, biological materials, testing reagents and laboratory materials.

Features

Temperature Control

Microprocessor control, Large LED display inner temperature clearly, and with easy view;

The inner temperature can be adjustable at the range of 2℃~15℃, with an increment of 0.1℃;

Multiple sensors to display or control the temperature;

Lock and password for protection to prevent arbitrary adjustment of operating parameters

Optional 4.3"color LCD touch screen display system.

Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery, Over temperature alarm system, set the alarm temperature as requirements;

Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm;

Protection function: power-on delay, time between stops;

Chart temperature recorder monitor system （Optional）.

Refrigeration System

Highly efficient famous brand compressor and fan;, with a high efficient refrigeration effect;

70mm thick foam insulation, better insulation effect, help to maintain temperature stability inside the refrigerator.

Forced-Air Circulation for large airflow with special air ducts to guarantee inner temperature consistency.

Large area of the evaporator design, cooling strong and high temperature uniformity, While effectively suppressing frost, reducing defrosting process.

CFC-Free/HCFC refrigerant.

Ergonomic Design

Design of computer-user interface based on 4.3” color touch screen;

Safety door lock, preventing unauthorized access;

Auto defrost function guarantees a good performance in high ambient temperature and humidity area;

Wide voltage design from 192V to 242V;

Inner LED lighting and caster design;

Maintenance free condenser design;

No condensation glass door;

USB export interface for event and temperature data ;

Baskets or stainless steel drawers （Optional）.

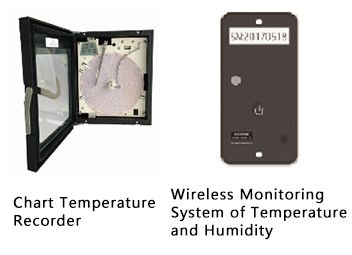

Optional accessories

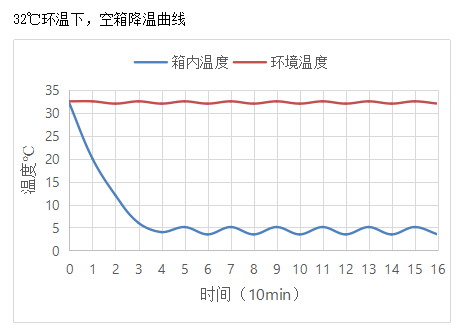

Performance Curve

Cooling curve of empty box at 32℃ ambient temperature

Specification
