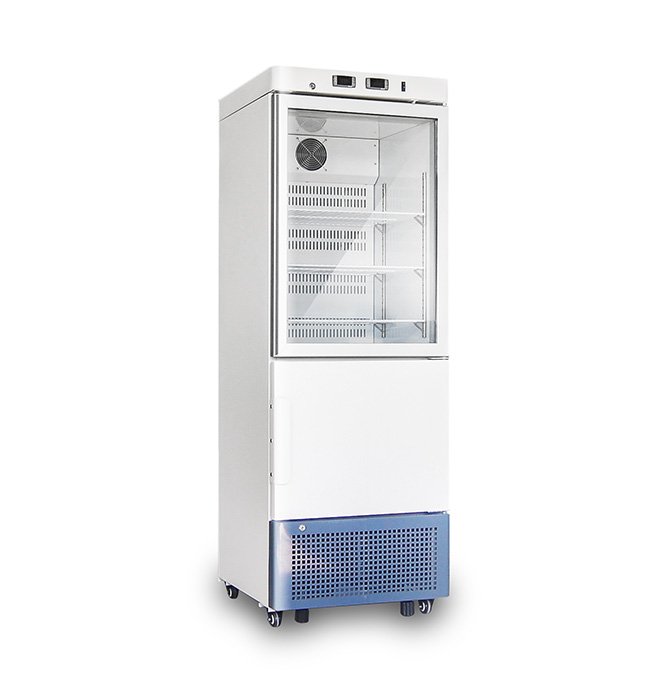

KYCD-300
Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
Application
Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
Designed to store pharmaceuticals, medicine, vaccines, biological materials, testing reagents and laboratory materials.
Features
Temperature Control
Microprocessor control, Large LED display inner temperature clearly, and with easy view
The inner temperature can be adjustable at the range of 2℃~8℃ and -10℃~ -25℃, with an increment of 0.1;
The Lowest and Highest temperature recorded value record.
Safety Control
Malfunction alarms: high temperature alarm, low temperature alarm, Power failure alarm, Door jammed, low voltage of backup battery. Over temperature alarm system, set the alarm temperature as requirements;
Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm;
Protection function: power-on delay, time between stops;
Refrigeration System
Highly efficient famous brand compressor and fan;, with a high efficient refrigeration effect;
Forced-Air Circulation for large airflow with special air ducts to guarantee inner temperature consistency.
Large area of the evaporator design, cooling strong and high temperature uniformity, While effectively suppressing frost, reducing defrosting process.
CFC-Free/HCFC refrigerant.
Ergonomic Design
Safety door lock, preventing unauthorized access;
Auto defrost function guarantees a good performance in high ambient temperature and humidity area;
Wide voltage design from 192V to 242V;
Inner LED lighting and caster design;
Adjustable shelves design;
No condensation glass door;
Foaming door is optional;
Stopper on rear against back wall.

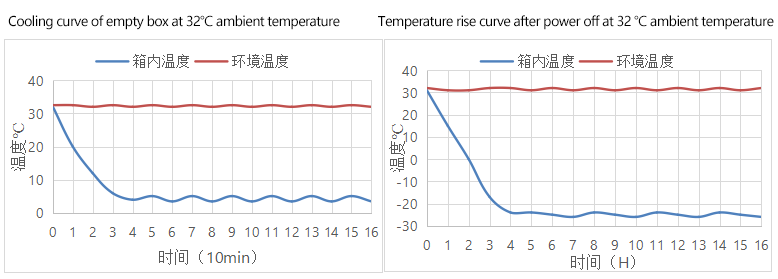

Performance Curve
Specification
| Model | KYCD-300 | |
| Technical Data | Cabinet Type | Vertical |
| Climate Class | ST | |
| Cooling Type | REF: Forced air cooling; FREEZER: Manual | |
| Defrost Mode | Auto | |
| Refrigerant | HC,R600a | |
| Performance | Cooling performance(℃) | 4/-25 |
| Temperature Range(℃) | REF: 2～8；FREEZER:-10～-25 | |
| Material | Interior | Galvanized steel powder coating（white） |
| Exterior | Galvanized steel powder coating（white) | |
| Control | Controller | Microprocessor |
| Display | LCD | |
| Alarm | Audible | |
| Dimensions | Capacity(L) | REF:200L；FREEZER:100L |
| Net/Gross Weight(approx) | 88.5/100 (kg) | |
| Interior Dimensions(W*D*H) | REF:516×498×730mm；FREEZER:458×469×356mm | |
| Exterior Dimensions(W*D*H) | 600×609×1750mm | |
| Packing Dimensions(W*D*H) | 660x660x1840mm | |
| Electrical Data | Power Supply(V/Hz) | 220V/50Hz |
| Power(W) | 340 | |
| Functions | High/Low Temperature | Yes |
| Sensor Failure | Yes | |
| Door Ajar | Yes | |
| Lockage | Yes | |
| Inner LED light | Yes | |
| Accessories | Caster | Yes |
| Test Hole | optional | |
| Shelves | REF:2；FREEZER:1 | |
| Foaming Door | optional | |
| Temperature Recorder | optional | |
