KYD-L1100F

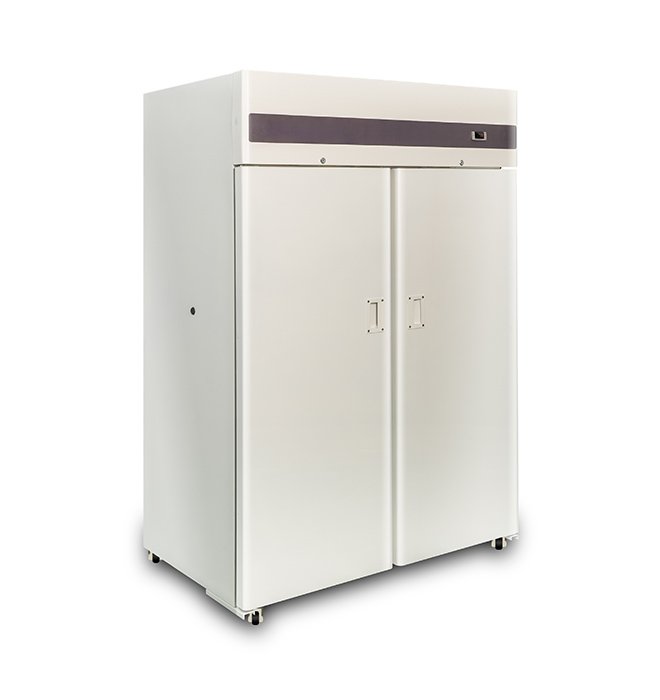

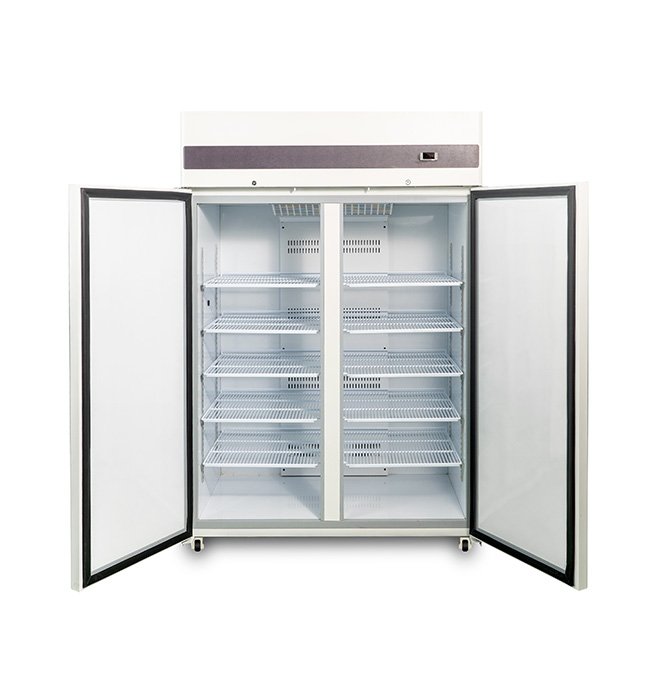

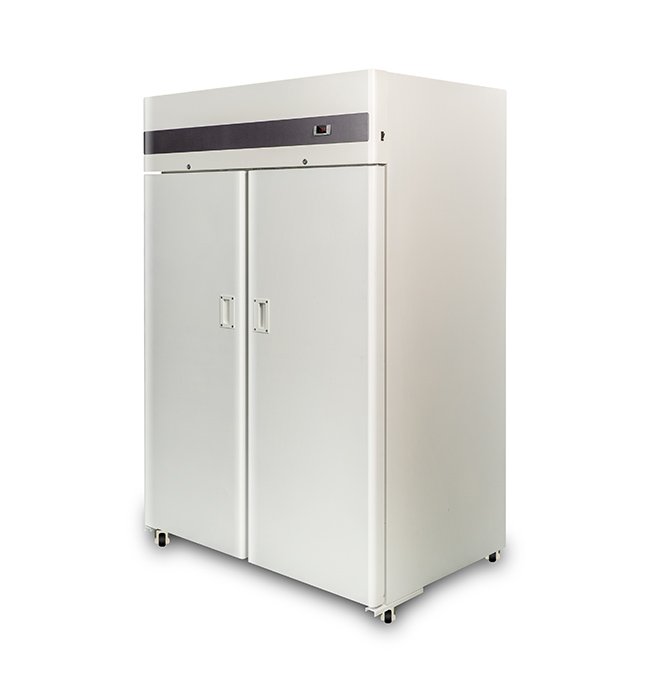

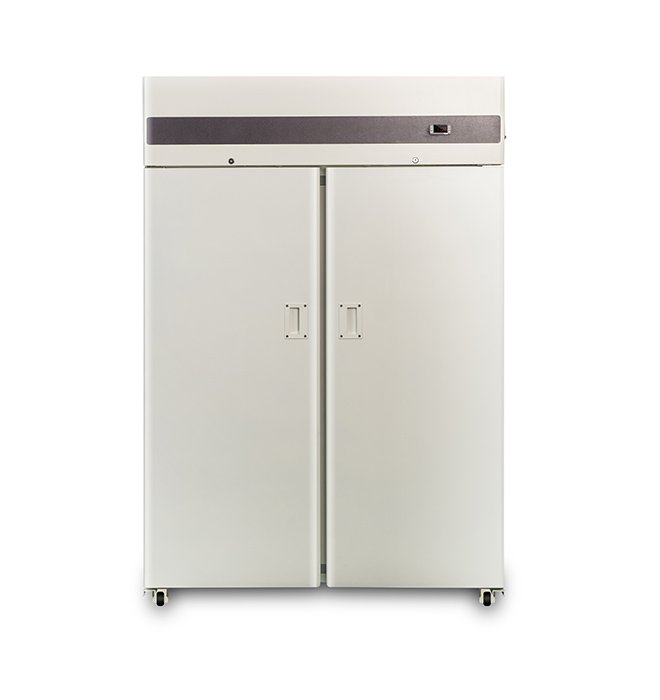

-30℃ Laboratory Deep Freezer is designed with Auto Defrost & Forced-Air Circulation. Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
-30℃ Laboratory Deep Freezer is designed with Auto Defrost & Forced-Air Circulation. Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
Application
-30℃ Laboratory Deep Freezer is designed with Auto Defrost & Forced-Air Circulation.
Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
Designed to store pharmaceuticals, medicine, vaccines, biological materials, testing reagents and laboratory materials.
Features
Temperature Control
Microprocessor control, Large LED display inner temperature clearly, and with easy viewing;
The inner temperature can be adjustable at the range of -10℃~-30℃, in increment of 0.1℃;
Multiple sensors to display or control the temperature;
Lock and password protection to prevent arbitrary adjustment of operating parameters
Safety Control
Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery, Over temperature alarm system, set the alarm temperature as requirements;
Three alarming methods: buzzer alarming, digital flashing alarming and remote alarm interface.
Protection function: start-up delay, shutdown interval.
Chart temperature recorder monitor system (Optional).
Refrigeration System
Highly efficient famous brand compressor and fan, with a high efficient refrigeration effect;
70mm thick foam insulation, better insulation effect, helps to maintain temperature stability inside the refrigerator.
Forced-Air Circulation for large airflow with special air ducts to guarantee inner temperature consistency.
Large area of the evaporator design, strong cooling and high temperature uniformity, while effectively restraining frost, reduce defrosting process.
CFC-Free/HCFC refrigerant.
Ergonomic Design
Safety door lock, preventing unauthorized access;
Auto defrost function guarantees a good performance in high ambient temperature and humidity area;
Wide voltage design from 192V to 242V;
Heavy-duty lockable casters, easy to move and fix.
Baskets or stainless steel drawers (Optional).
Specification
Model | KYD-L650F | KYD-L1100F | |
Technical Data | Cabinet Type | Vertical | Vertical |
Climate Class | N | N | |
Cooling Type | Forced air cooling | Forced air cooling | |
Defrost Mode | Auto | Auto | |
Refrigerant | HC,R290 | HC,R290 | |
Performance | Cooling performance(℃) | -25 | -25 |
Temperature Range(℃) | -10~-30 | -10~-30 | |
Control | Controller | Microprocessor (Dixell XR30) | Microprocessor (Dixell XR30) |
Display | LED | LED | |
Material | Interior | Galvanized steel powder coating(white)stainless steel is optional | Galvanized steel powder coating(white)stainless steel is optional |
Exterior | Galvanized steel powder coating(white) | Galvanized steel powder coating(white) | |
Electrical Data | Power Supply(V/Hz) | 220/50 (115/60 is optional) | 220/50 (115/60 is optional) |
Power(W) | 430 | 600 | |
Dimensions | Capacity(L) | 600 | 1100 |
Net/Gross Weight(approx) | 125/150 (kg) | 165/195 (kg) | |
Interior Dimensions(W*D*H) | 640×680×1380 (mm) | 1160×680×1380 (mm) | |
Exterior Dimensions(W*D*H) | 780×822×1880 (mm) | 1300×822×1880 (mm) | |
Packing Dimensions(W*D*H) | 880×950×2020 (mm) | 1400×950×2020 (mm) | |
Functions | High/Low Temperature | Yes | Yes |
High/Low Temperature Recorder | Yes | Yes | |
Remote Alarm | Yes | Yes | |
Power Failure | No | No | |
Low Battery | No | No | |
Door Ajar | Yes | Yes | |
Lockage | Yes | Yes | |
Inner LED light | Yes | Yes | |
Accessories | Caster | Yes | Yes |
Test Hole | Yes | Yes | |
Shelves/Inner Doors | 5/- | 5/- | |
Foaming Door | Yes | Yes | |
USB Interface | No | No | |
Temperature Recorder | optional | optional |
