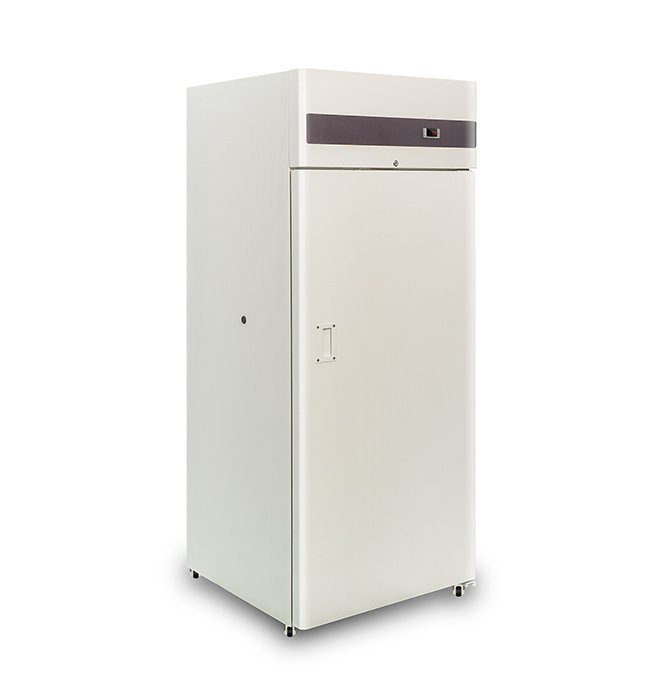

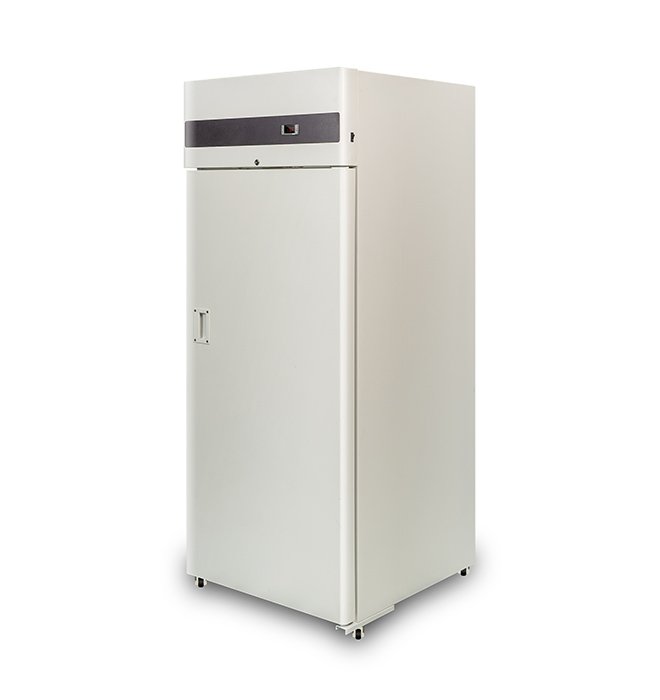

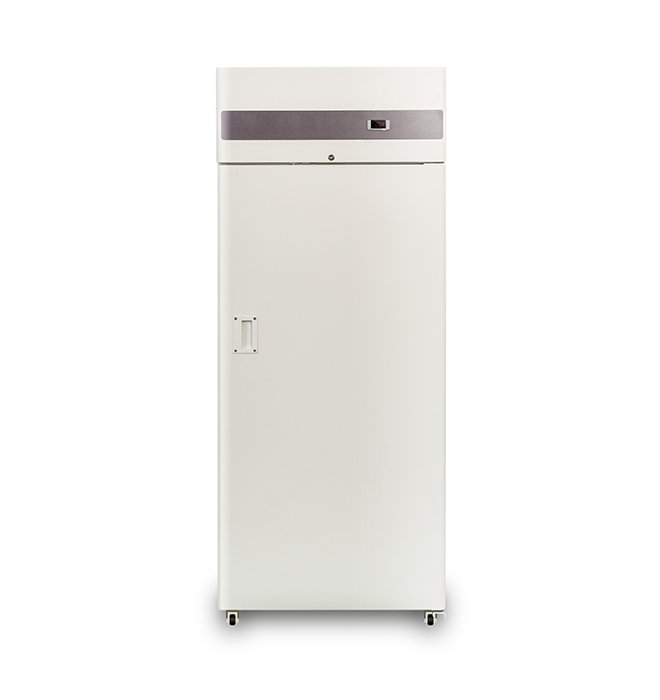

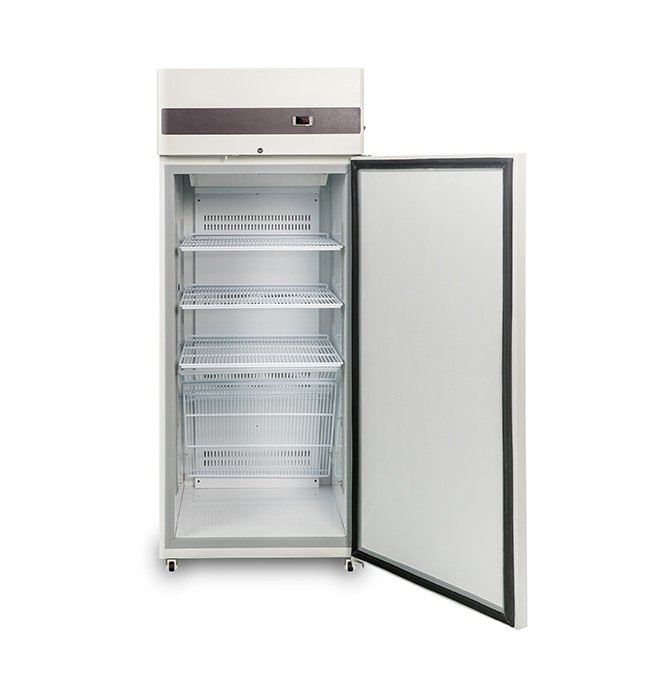

-30℃ Upright Deep Freezer

KYD-L650F

-30℃ Laboratory Deep Freezer is designed with Auto Defrost & Forced-Air Circulation.Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.

Description

Application

-30℃ Laboratory Deep Freezer is designed with Auto Defrost & Forced-Air Circulation.
Suitable for hospitals, blood banks, epidemic prevention, animal husbandry areas, pharmaceutical companies and research institutes.
Designed to store pharmaceuticals, medicine, vaccines, biological materials, testing reagents and laboratory materials.


Features

Temperature Control

Microprocessor control, Large LED display inner temperature clearly, and with easy viewing;

The inner temperature can be adjustable at the range of -10℃~-30℃, in increment of 0.1℃;

Multiple sensors to display or control the temperature;

Lock and password protection to prevent arbitrary adjustment of operating parameters


Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery, Over temperature alarm system, set the alarm temperature as requirements;

Three alarming methods: buzzer alarming, digital flashing alarming and remote alarm interface.

Protection function: start-up delay, shutdown interval.

Chart temperature recorder monitor system (Optional).


Refrigeration System

Highly efficient famous brand compressor and fan, with a high efficient refrigeration effect;

70mm thick foam insulation, better insulation effect, helps to maintain temperature stability inside the refrigerator.

Forced-Air Circulation for large airflow with special air ducts to guarantee inner temperature consistency.

Large area of the evaporator design, strong cooling and high temperature uniformity, while effectively restraining frost, reduce defrosting process.

CFC-Free/HCFC refrigerant.


Ergonomic Design

Safety door lock, preventing unauthorized access;

Auto defrost function guarantees a good performance in high ambient temperature and humidity area;

Wide voltage design from 192V to 242V;

Heavy-duty lockable casters, easy to move and fix.

Baskets or stainless steel drawers (Optional).


Specification


Model KYD-L650F KYD-L1100F
Technical Data Cabinet Type Vertical Vertical
Climate Class N N
Cooling Type Forced air cooling Forced air cooling
Defrost Mode  Auto  Auto
Refrigerant HC,R290 HC,R290
Performance Cooling performance(℃) -25 -25
Temperature Range(℃)  -10~-30  -10~-30
Control Controller Microprocessor (Dixell XR30) Microprocessor (Dixell XR30)
Display LED LED
Material Interior  Galvanized steel powder coating(white)stainless steel is optional Galvanized steel powder coating(white)stainless steel is optional
Exterior  Galvanized steel powder coating(white)    Galvanized steel powder coating(white)
Electrical Data Power Supply(V/Hz) 220/50 (115/60 is optional) 220/50 (115/60 is optional)
Power(W) 430 600
Dimensions Capacity(L) 600 1100
Net/Gross Weight(approx) 125/150 (kg) 165/195 (kg)
Interior Dimensions(W*D*H) 640×680×1380 (mm) 1160×680×1380 (mm)
Exterior Dimensions(W*D*H) 780×822×1880 (mm) 1300×822×1880 (mm)
Packing Dimensions(W*D*H) 880×950×2020 (mm) 1400×950×2020 (mm)
Functions High/Low Temperature Yes Yes
High/Low Temperature Recorder Yes Yes
Remote Alarm Yes Yes
Power Failure No No
Low Battery No No
Door Ajar Yes Yes
Lockage Yes Yes
Inner LED light Yes Yes
Accessories Caster Yes Yes
Test Hole Yes Yes
Shelves/Inner Doors 5/- 5/-
Foaming Door Yes Yes
USB Interface No No
Temperature Recorder optional optional
