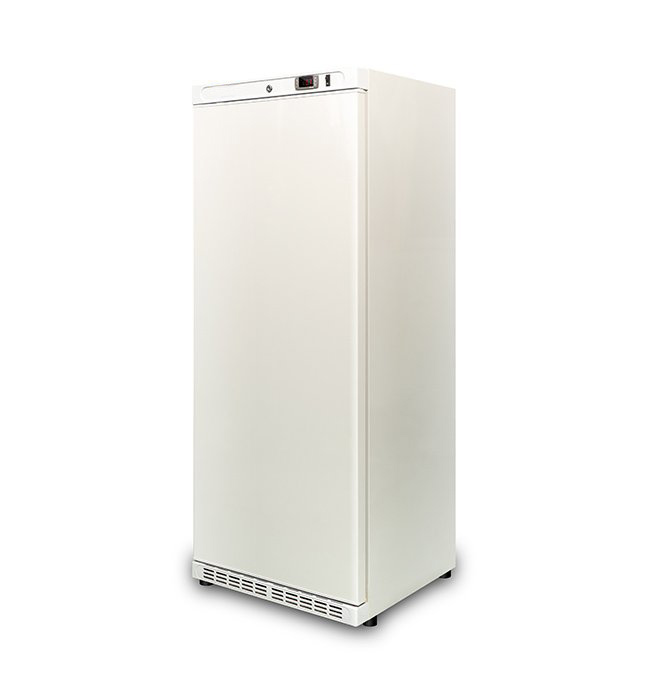

-25℃ Upright Deep Freezer

KYD260F

-25 ℃ Low Temperature Upright Freezer is mainly in order to meet the medical and scientific research and industrial preparation of cold storage under normal circumstances demand.

Description

Application

-25 ℃ Low Temperature Upright Freezer is mainly in order to meet the medical and scientific research and industrial preparation of cold storage under normal circumstances demand. It has large capacity, saving space and precise temperature control, temperature stability, quick cooling, mainly used in the sample access frequently, sample large capacity, users of laboratory space is relatively small.


Features

There are a variety of ultra-low temperature storage solutions for individual laboratory users to choose from to meet the growing demand for sample storage.


Temperature Control

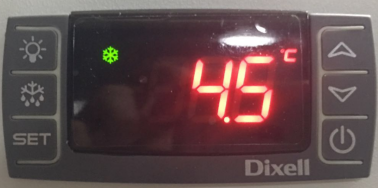

Microprocessor control, Large LED display inner temperature clearly, and with easy view;

The inner temperature can be adjustable at the range of -10℃~-25℃;

Lock and password for protection to prevent arbitrary adjustment of operating parameters


Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery. Over temperature alarm system, set the alarm temperature as requirements;

Two alarming methods: buzzer alarming and digital flashing alarming;

Protection function: power-on delay, time between stops.


Refrigeration System

Highly efficient famous brand compressor and fan;, with a high efficient refrigeration effect;

Optimized refrigeration technology, low noise, more energy efficiency;

CFC-Free overall polyurethane foaming insulation;

CFC-Free refrigerant.


Ergonomic Design

Safety door lock, preventing unauthorized access;

Wide voltage design from 192V to 242V;

Pressure-balanced port design, easy to open the door;

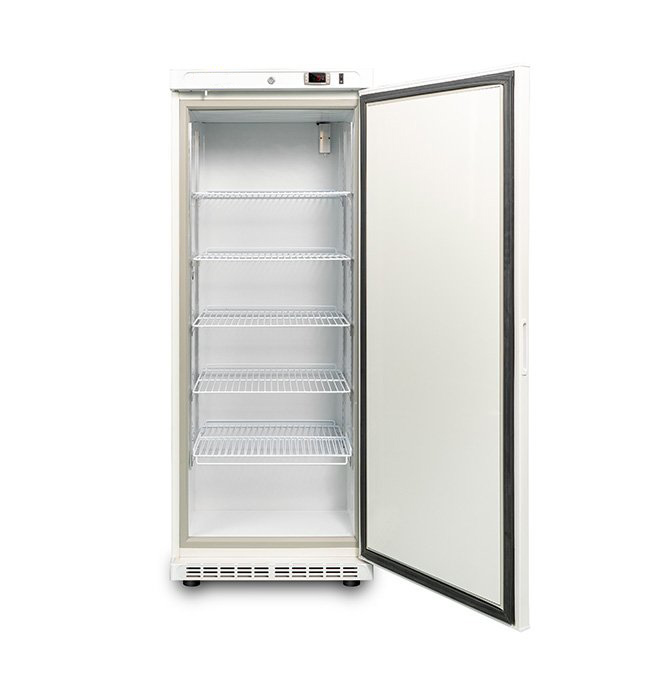

Adjustable shelves design;

Heavy type caster and locking with adjustable screw, easy to move and fix.


Performance Curve

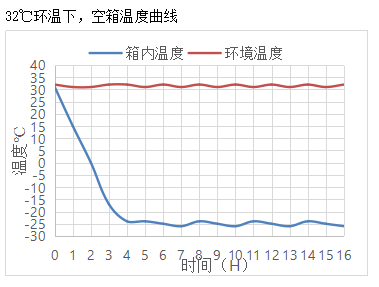

Cooling curve of empty box at 32℃ ambient temperature


Specification

Model KYD60F KYD110F KYD260F KYD390F DW-25L600
Technical Data Cabinet Type Desktop Under-counter Vertical Vertical Vertical
Climate Class N N N N N
Cooling Type Direct cooling
Defrost Mode Manual
Refrigerant HC, R600a
Performance Cooling performance(℃) -25 -25 -25 -25 -25
Temperature Range(℃) -10~-25 -10~-25 -10~-25 -10~-25 -10~-25
Control Controller Microprocessor (Elitech) Microprocessor (Dixell)
Display LED LED
Material Interior Galvanized steel powder coating ABS
Exterior Galvanized steel powder coating Galvanized steel powder coating
Electrical Data Power Supply(V/Hz) 220/50 220/50 220/50 220/50 220/50
Power(W) 65 80 135 220 350
Dimensions Capacity(L) 60 110 260 400 600
Net/Gross Weight(approx) 40/45 (kg) 50/58 (kg) 75/85 (kg)
101/115(kg)
Interior Dimensions(W*D*H) 410×450×420(mm) 500×450×570 (mm) 500×450×1290 (mm)
645×530×1645 (mm)
Exterior Dimensions(W*D*H) 510×560×655(mm) 600×560×805 (mm) 600×560×1525 (mm)
775×750×1900 (mm)
Packing Dimensions(W*D*H) 570×620×760 (mm) 660×620×910 (mm) 660×620×1630 (mm)
850×830×2040 (mm)
Functions High/Low Temperature Y Y Y Y Y
Remote Alarm Y Y Y Y N/A
Power Failure Y Y Y Y N/A
Low Battery Y Y Y Y N/A
Door Ajar Y Y Y Y N/A
Inner LED light Y Y Y Y N/A
Sensor Error Y Y Y Y Y
presure balance port N/A N/A N/A N/A Y
Lockage Y Y Y Y Y
Accessories Caster N/A N/A N/A Y Y
Foot Y Y Y N/A N/A
Test Hole Y Y Y Y N/A
Shelves/Inner Doors 2/- 3/- 5/- 6/- 7/-
USB Interface Y Y Y Y N/A
Temperature Recorder Y Y Y Y Optional
