Application

-40℃ Deep Freezer is designed for long term storage of various medical and biological products, such as blood plasma, vaccines, testing reagents and laboratory materials, even some electronic products for test. It can be installed in research institutions and clinical sites in life science, blood banks, hospitals, electronic testing and medical laboratories.

Features

There are a variety of ultra-low temperature storage solutions for individual laboratory users to choose from to meet the growing demand for sample storage.

Temperature Control

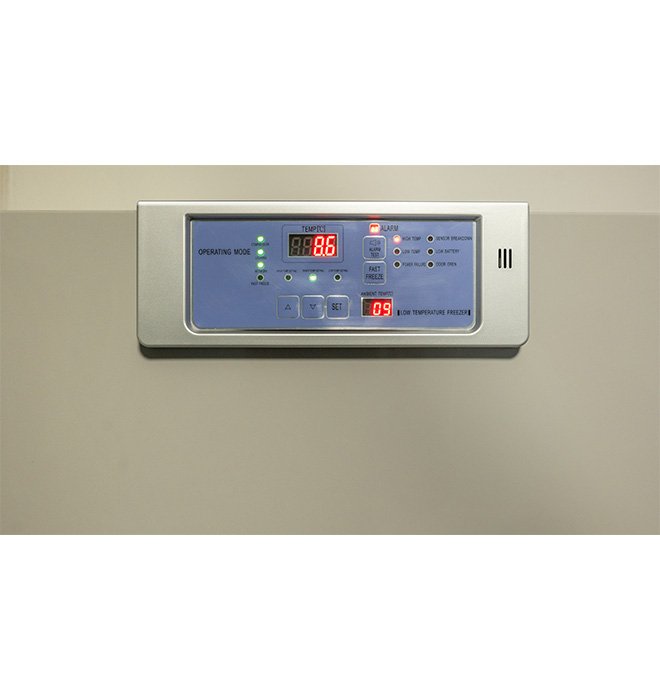

Microprocessor control, Large LED display inner temperature clearly, and with easy view;

The inner temperature can be adjustable at the range of -10℃~-40℃, with an increment of 0.1℃;

Lock and password for protection to prevent arbitrary adjustment of operating parameters

Safety Control

Malfunction alarms: high temperature alarm, low temperature alarm, Sensor failure, Power failure alarm, low voltage of backup battery, Over temperature alarm system, set the alarm temperature as requirements;

Three alarming methods: buzzer alarming, digital flashing alarming and Remote alarm;

Protection function: power-on delay, time between stops;

Chart temperature recorder monitor system （Optional）.

Refrigeration System

Highly efficient SECOP compressor and high reliability fan;

90mm thick foam insulation, better insulation effect, help to maintain temperature stability inside the freezer.

Optimized single refrigerant cooling system, easy maintenance and repair;

CFC-Free overall polyurethane foaming insulation;

CFC-Free refrigerant.

Ergonomic Design

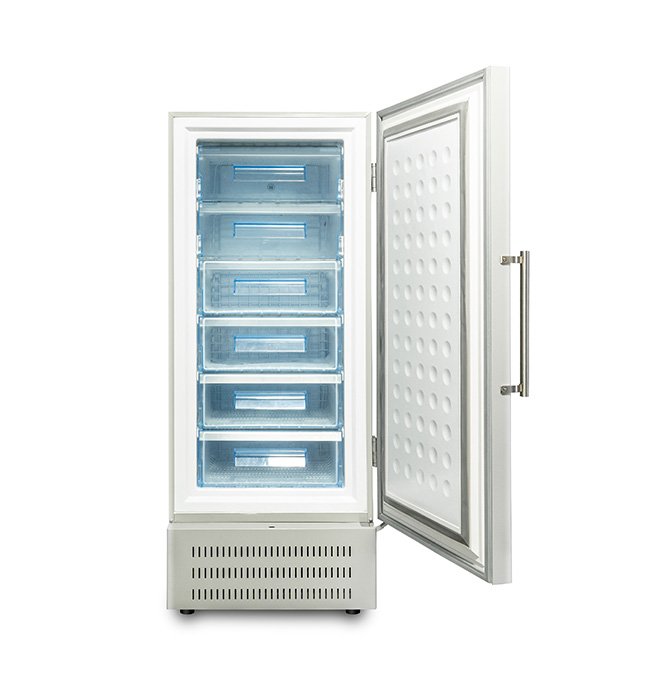

Double inner doors to reduce the loss of cold air after opening the door;

Safety door lock, preventing unauthorized access;

Wide voltage design from 192V to 242V;

Suitable for 2" and 3" international standard freezer boxes;

Pressure-balanced port design, easy to open the door;

Heavy type caster and locking with adjustable screw, easy to move and fix.

Adjustable shelf design

Ultra-simple condenser filter design, convenient for maintenance and washing.

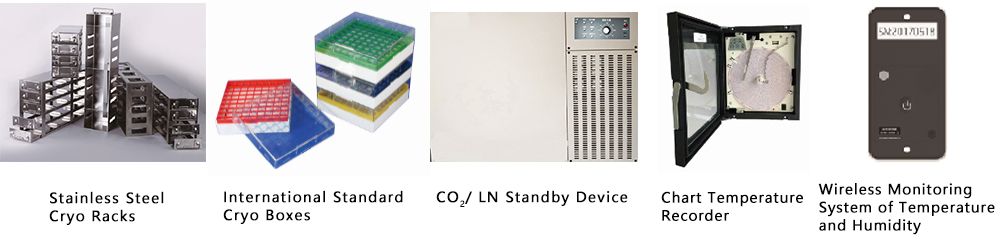

Baskets or stainless steel drawers (Optional).

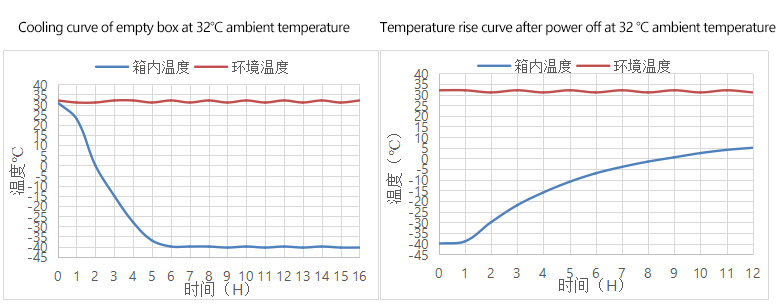

Performance Curve

Specification
