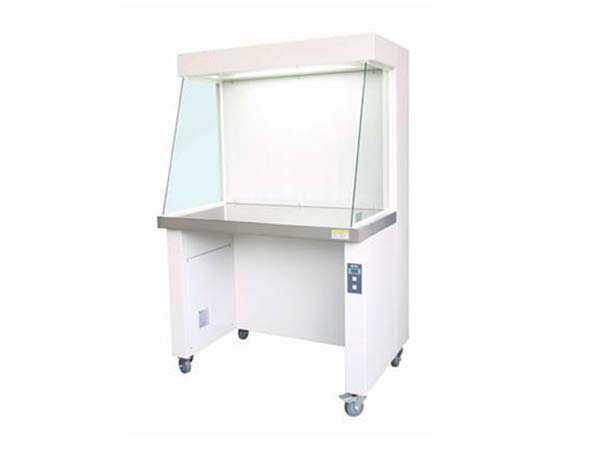

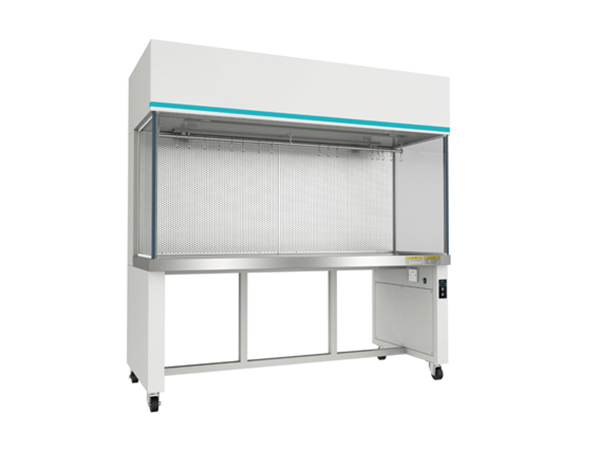

SW-CJ Standard Clean Bench
Model: SW-CJ-1B(U)/C(U)
Model: SW-CJ-1B(U)/C(U)
◆ Digital display interface, soft touch key operation, air velocity 3 level adjust, and display the status of the fan, lighting and UV.
◆ Set the UV lamp reservation on and off, display fan, UV lamp, filter cumulative running time.
◆ Built-in tempered glass on both sides for easy observing.
◆ Integrative stainless steel working table corrosion-resistant, easy to clean.
◆ High grade steel with static powder coating, well corrosion resistant ability, inhibiting bacterial growth effectively.
◆ Streamline shape decrease interference of airflow.
◆ High quality swivel caster with break easy to move and fixation.
◆ Humanized pre-filters design make customers more convenient to change and clean.
◆ Interlocking lighting and sterilization systems, with spare sockets design,Short circuit protection, safe and convenient to use.
◆ Every clean bench is tested individually in according with international standard at factory for safety and performance.
◆ Air inlet from top and horizontal laminar flow type for PIVAS center is optional.
| Model/Item |
SW-CJ-1B |
SW-CJ-1C |
SW-CJ-1BU |
SW-CJ-1CU |
||
|
Cleanliness |
ISO CLASS 5 |
|||||
|
Air Velocity |
≥0.3 m/s (55.1~70.9fpm) (adjustable) |
|||||
|
Noise |
≤62 dB(A) |
|||||
|
Illumination |
≥300 Lx |
|||||
|
Power Supply |
AC220V, 1φ, 50Hz |
|||||
|
Consumption ※ |
250 w |
500 w |
250 w |
500 w |
||
|
Weight |
100 kg |
160 kg |
100 kg |
160 kg |
||
|
Work Dimension (W1XD1XH1) |
820 x 480(300) x 600 mm (32.3'' x 18.9'' x 23.6'') |
1680 x 480(300) x 600 mm (66.1'' x 18.9'' x 23.6'') |
820 x 480(300) x 600 mm (32.3'' x 18.9'' x 23.6'') |
1680 x 480(300) x 600 mm (66.1'' x 18.9'' x 23.6'')
|
||
|
Overall Dimension (WXDXH) |
900 x 700 x 1450 mm (35.4'' x 27.6'' x 57.1'')
|
1760 x 700 x 1450 mm (69.3'' x 27.6'' x 57.1'') |
900 x 700 x 1450 mm (35.4'' x 27.6'' x 57.1'') |
1760 x 700 x 1450 mm (69.3'' x 27.6'' x 57.1'') |
||
|
Size & No.of HEPA Filter |
820 x 600 x 50 mm x1 set (32.3'' x 23.6'' x 2.0'' x1 set) |
820 x 600 x 50 mm x2 sets (32.3'' x 23.6'' x 2.0'' x2 sets) |
820 x 600 x 50 mm x1 set (32.3'' x 23.6'' x 2.0'' x1 set) |
820 x 600 x 50 mm x2 sets (32.3'' x 23.6'' x 2.0'' x2 sets)
|
||
| Light | 18 w x 1 pc | 36 w x 1 pc | 18 w x 1 pc | 36 w x 1 pc | ||
| UV Light (optional) | - | 18 w x 1 pc | 36 w x 1 pc | |||
|
No.of Colony |
- |
≤0.5cfu/Dish*0.5h |
||||
| Materials | Working table: All-in-one Stainless Steel, outside cabinet: high grade steel and lacquered in ivory | |||||
|
Mode of Operation |
Double/single side |
Single/single side |
Single/single side |
Double/single side |
||
※ not include spare socket, the capacity of each unit is 3A.
